Self-growing NixOS appliance images with systemd-repart

This is part one of a four-part article series in which we have a closer look at how easy it is to create GNU/Linux systems with NixOS that are:
- Small: no unnecessary parts, built with Nix, but contains no Nix itself.
- NixOS is not designed to be small up front, but provides great facilities to make system configurations and packages minimal.
- We will use
systemd-repart
to create minimal raw system images.
- Self-inflating: Hardware disk size is not always known at image build time, but the image can inflate itself at the first boot to use the whole disk.
- We will again use
systemd-repart
to repartition the disk at early boot time.
- We will again use
- Auto-updating:
systemd-sysupdate
provides powerful mechanisms to make systems self-updatable over network.- NixOS already provides system switching capabilities. These necessitate Nix being installed on that system to manage system generations, which is not what we want on a minimal appliance.
systemd-sysupdate
helps us create and swap immutable A/B system partitions instead
In the different parts, we handle the following topics step by step:
- NixOS appliance images with systemd-repart (this article)
- Minimizing NixOS images (TBD)
- Immutable A/B system partitions with NixOS for over-the-air updates (TBD)
- Cross-compiling the image for other platforms (TBD)
A bootable self-inflating disk image with NixOS

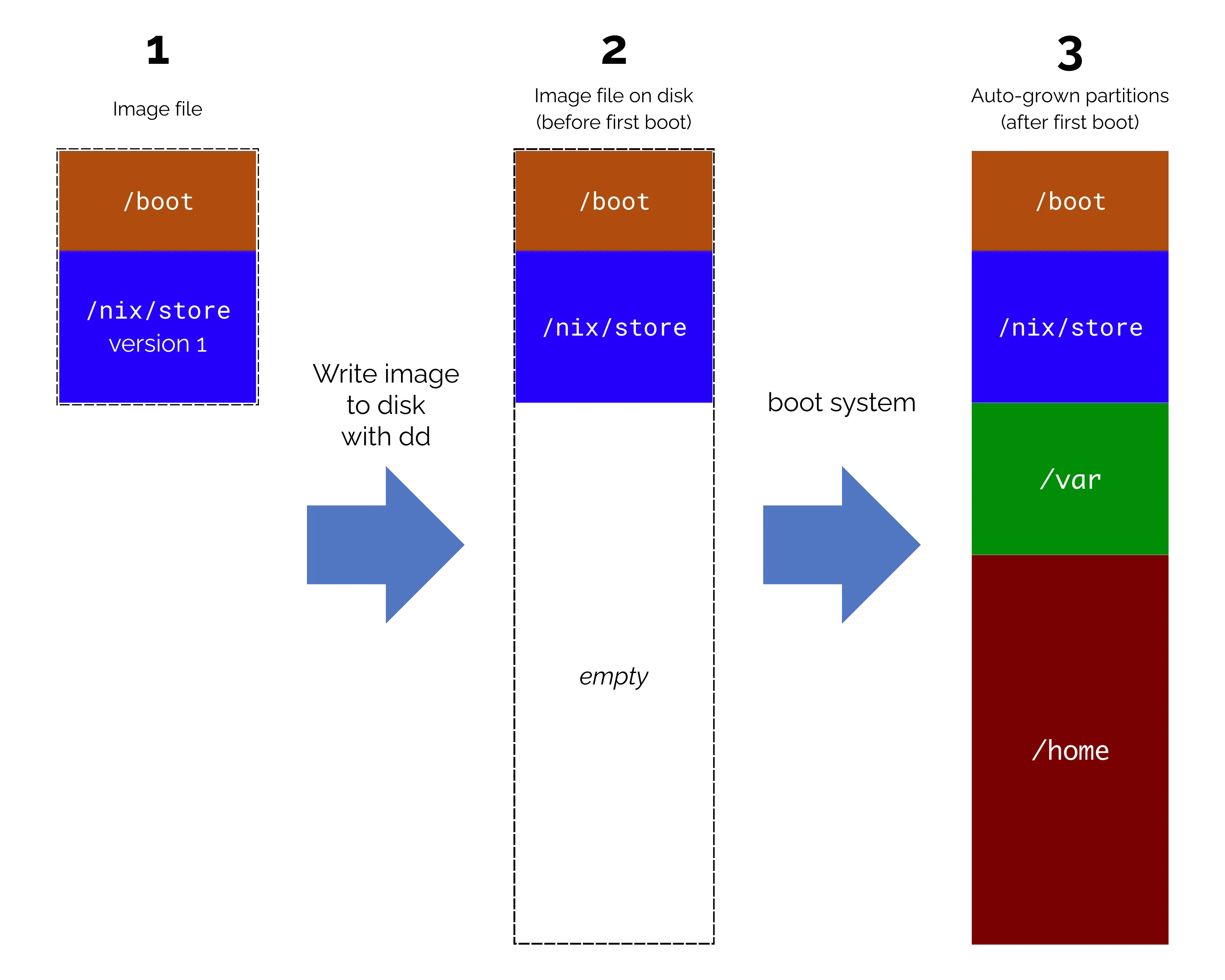

The goal of the article is to implement the following scenario:
- We build a bootable system image. It shall be only a few hundred megabytes small for quick downloads and image transfer to boot media.
- We write the system image onto a real hard disk or other bootable medium. The disk is much bigger than the image.
- We want the system to fill the rest of the disk with a
/home
and a/var
partition automatically during the first boot.
The NixOS documentation demonstrates how to build appliance-based images, so we will roughly follow their approach with minor modifications.
All the code is already available on GitHub: https://github.com/applicative-systems/simple-systemd-repart-nixos-image
Letβs start with a configuration.nix
file for the later system:
# file: configuration.nix
{ modulesPath, ... }:
{
imports = [
(modulesPath + "/profiles/image-based-appliance.nix")
./filesystems.nix
./image.nix
./inflate.nix
];
boot.loader.grub.enable = false;
# unsecured demo configuration
services.getty.autologinUser = "root";
users.users.root.initialPassword = "";
}
This setup provides an unsecured auto login at boot for the user root
that will help with playing around later.
Apart from that, we import the image-based-appliance.nix
profile, which disables Nix and also the mechanisms behind nixos-rebuild switch
.
This way, the system cannot change itself any longer (because everything is locked read-only in the nix store), but we will fix that in the third article (TBD).
We create the files filesystem.nix
, image.nix
, inflate.nix
in the following steps.
Letβs start with filesystems.nix
:
# file: filesystems.nix
{
fileSystems = {
"/" = {
fsType = "tmpfs";
options = [ "size=100m" ];
};
"/boot" = {
device = "/dev/disk/by-partlabel/boot";
fsType = "vfat";
};
"/nix/store" = {
device = "/dev/disk/by-partlabel/nix-store";
fsType = "squashfs";
};
"/home" = {
device = "/dev/disk/by-partlabel/home";
fsType = "ext4";
};
"/var" = {
device = "/dev/disk/by-partlabel/var";
fsType = "ext4";
};
};
}
/boot
and /nix/store
will be part of the initial image.
The root file system will be a tmpfs
that runs completely in RAM.
That is not going to be a problem because our generated NixOS configuration creates a new /etc
file system with all configuration from scratch at every boot (the image-based-appliance.nix
profile configures this).
/var
and /home
shall not be part of the initial image, as they will be created at boot time, but our NixOS configuration shall assume that they exist.
To match these assumptions, we now need to define the partitions labeled as boot
and nix-store
in an image description in image.nix
:
# file: image.nix
{
modulesPath,
pkgs,
config,
lib,
...
}:
{
imports = [
(modulesPath + "/image/repart.nix")
];
image.repart =
let
inherit (pkgs.stdenv.hostPlatform) efiArch;
in
{
name = "image";
partitions = {
esp = {
contents = {
"/EFI/BOOT/BOOT${lib.toUpper efiArch}.EFI".source =
"${pkgs.systemd}/lib/systemd/boot/efi/systemd-boot${efiArch}.efi";
"/EFI/Linux/${config.system.boot.loader.ukiFile}".source =
"${config.system.build.uki}/${config.system.boot.loader.ukiFile}";
};
repartConfig = {
Format = "vfat";
Label = "boot";
SizeMinBytes = "200M";
Type = "esp";
};
};
nix-store = {
storePaths = [ config.system.build.toplevel ];
nixStorePrefix = "/";
repartConfig = {
Format = "squashfs";
Label = "nix-store";
Minimize = "guess";
ReadOnly = "yes";
Type = "linux-generic";
};
};
};
};
}
The repart.nix
NixOS module provides us with the attribute tree image.repart...
to define partitions together with their initial content:
image.repart.partitions.esp
defines the partition that contains the bootable executables. It will be labeled asboot
.image.repart.partitions.nix-store
contains thetoplevel
derivation of the system. This is the βoverall closureβ that depends on everything that this system configuration consists of.
The content of the boot partition is the most complicated part in this snippet:
It puts kernel and systemd-boot
files into the bootable partition.
The paths need to follow specific conventions for the boot to work.
Note that the attribute image.repart.partitions.nix-store.nixStorePrefix
is set to /
because we mount this partition under /nix/store
later.
This attribute removes the /nix/store
prefix of the stored files so that we donβt get a double-prefix later.
What remains is the question βHow does the system create the /home
and /var
partitions at boot?β.
The inflate.nix
module takes care of this:
# file: inflate.nix
{
boot.initrd.systemd.repart.enable = true;
boot.initrd.systemd.repart.device = "/dev/sda";
systemd.repart.partitions = {
home = {
Format = "ext4";
Label = "home";
Type = "home";
Weight = 2000; # take twice as much space as /var
};
var = {
Format = "ext4";
Label = "var";
Type = "var";
Weight = 1000;
};
};
}
NixOS provides a systemd service that runs systemd-repart
at boot time.
Note that we are not enabling it with boot.systemd.repart.enable
, but instead using boot.initrd.systemd.repart.enable
.
The difference is that the service runs at the boot stage, where everything is still running from the initial RAM disk before the hard disk partitions have been mounted.
The systemd.repart.partitions
attribute set describes the two partitions that will be missing at the first boot.
systemd-repart
compares the partition descriptions that we provide with the actual disk partitions.
Everything that it cannot find (and it will not find disks labeled var
and home
with the respective types), it will create.
The Weight
attributes are interesting because with the given setting, systemd-repart
will take this into account as constraints:
First, it needs to find out how much space there is, then it needs to calculate how much space each partition may fill.
In our case, var
shall be only half the size of home
.
How systemd-repart
works in general is explained in the systemd documentation.
I found it not easy to understand at first because it has the character of a reference manual, but it effectively explains all the option fields very well.
Letβs make this work by putting it into a flake.nix
file:
{
description = "Simple systemd-repart based NixOS appliance images";
inputs.nixpkgs.url = "github:nixos/nixpkgs/nixos-unstable";
outputs =
{ self, nixpkgs }:
let
system = "x86_64-linux";
pkgs = nixpkgs.legacyPackages.${system};
in
{
nixosConfigurations.appliance = nixpkgs.lib.nixosSystem {
modules = [
./config/configuration.nix
{ nixpkgs.hostPlatform = system; }
];
};
packages.${system} = {
inherit (self.nixosConfigurations.appliance.config.system.build) image;
};
};
}
If you run the demo code on a different platform than x86_64, you may adapt the system = ...;
line to your platform to make this work.
Build and run the image
On real disks
To build the image and move it onto a disk, we can now run:
nix build .#image
dd if=result/image.raw of=/dev/<some-disk> bs=4M
The disk can now be installed in a real computer.
Demonstration with a VM
To quickly demonstrate the behavior in a virtual machine, we can simulate the behavior of dd
on a disk by making a writable copy of our image and then expanding the size of the image.
This will result in empty, unpartitioned extra space of 10GB at the end of the image:
# produce the image
nix build .#image
# create a writable local copy of it
cp result/image.raw demo-disk.raw
chmod +w demo-disk.raw
# Resize the image with an extra 10GB
qemu-img resize -f raw demo-disk.raw "+10G"
Running GNU parted
on the image now shows:
$ parted demo-disk.raw p
Model: (file)
Disk demo-disk.raw: 11.3GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:
Number Start End Size File system Name Flags
1 1049kB 211MB 210MB fat32 boot boot, esp
2 211MB 571MB 360MB nix-store
To run a VM with the image as its disk drive, we prepared the short script run-image.nix
, which can be installed in the flake like this:
packages.${system} = {
inherit (self.nixosConfigurations.appliance.config.system.build) image;
default = self.packages.${system}.run-image;
run-image = pkgs.callPackage ./run-image.nix {
inherit (self.nixosConfigurations.appliance.config.system.build) image;
};
};
The run-image
script will automatically create and expand the demo-disk.raw
file if it didnβt exist before (using the commands from earlier).
Then, it runs qemu
on the image file.
To invoke the script and launch a VM, run:
nix run
(This command works without further parameters because run-image
is also aliased as the default
package.)

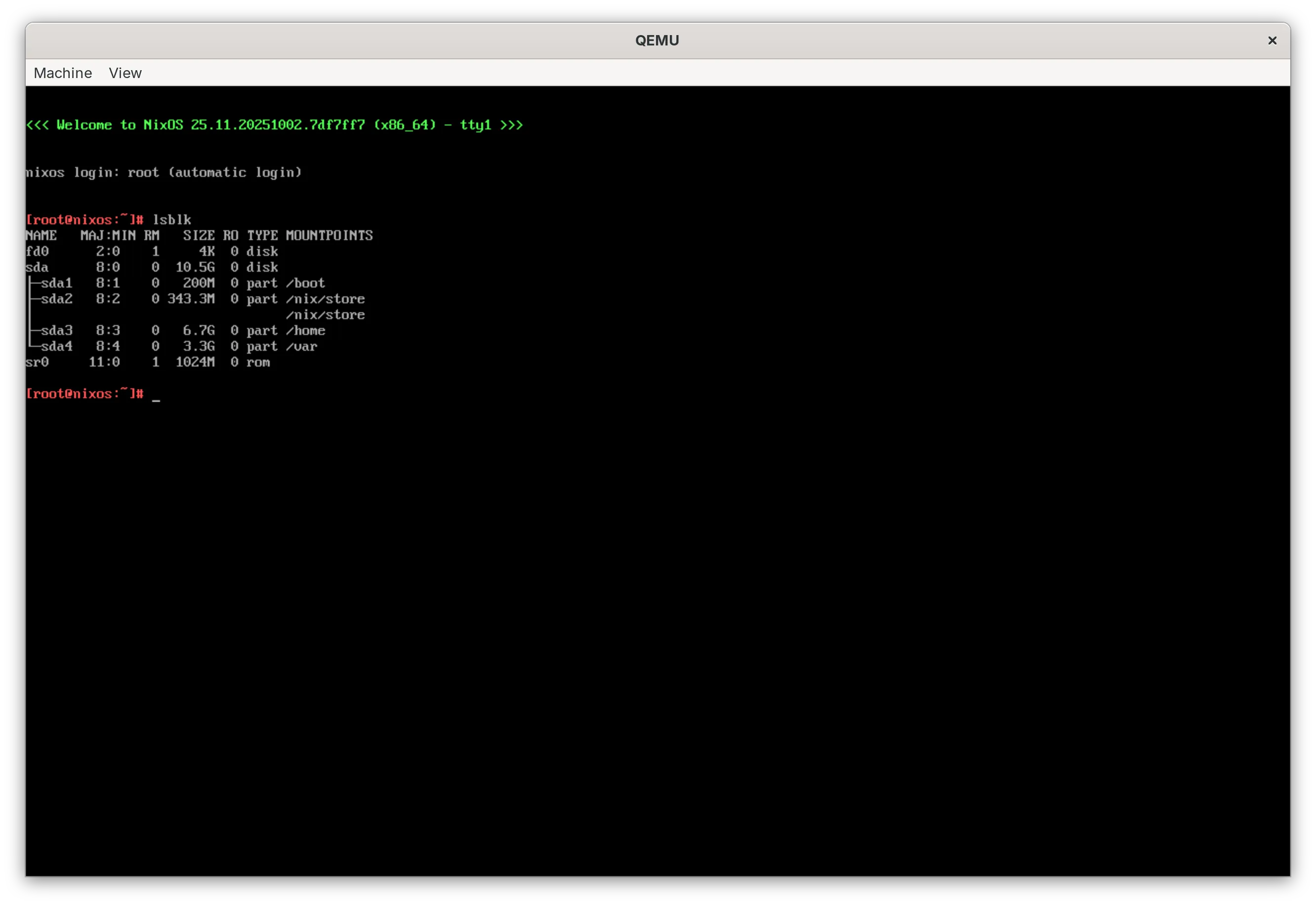

After running the script, a QEMU window will pop up and boot NixOS from the disk.
The new partitions are silently added at boot time and then mounted.
We can check that this happened by running lsblk
:
This is basically it.
We can have a look at the systemd-repart
logs that describe what it did to our disk:
# journalctl -u systemd-repart.service
No machine ID set, using randomized partition UUIDs.
TYPE LABEL UUID PARTNO FILE RAW SIZE SIZE PADDING
home home ace3ff5a-ef31-4d4e-a8b4-15e87fe71dc9 2 home.conf 7158276096 β 6.6G β 0B
var var 1b622723-1422-4a00-be82-c14a85a9c11d 3 var.conf 3579142144 β 3.3G β 0B
esp boot dac4058a-2fc0-4808-a7ef-b8b4501c00ce 0 209715200 200M 0B
linux-generic nix-store be6595b1-70b2-4c1e-a455-2693510a426f 1 359964672 343.2M 10G β 0B
Ξ£ = 10.5G Ξ£ = 0B
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
β β β
ββ boot β
β ββ var.conf
ββ home.conf
Applying changes to /dev/sda.
...
Adding new partition 2 to partition table.
Adding new partition 3 to partition table.
Writing new partition table.
Telling kernel to reread partition table.
All done.
At every reboot after the first one, the same log shows that systemd-repart
does nothing:
# journalctl -u systemd-repart.service
No machine ID set, using randomized partition UUIDs.
TYPE LABEL UUID PARTNO FILE RAW SIZE SIZE PADDING
home home ace3ff5a-ef31-4d4e-a8b4-15e87fe71dc9 2 home.conf 7158276096 6.6G 0B
var var 1b622723-1422-4a00-be82-c14a85a9c11d 3 var.conf 3579142144 3.3G 0B
esp boot dac4058a-2fc0-4808-a7ef-b8b4501c00ce 0 209715200 200M 0B
linux-generic nix-store be6595b1-70b2-4c1e-a455-2693510a426f 1 359964672 343.2M 0B
Ξ£ = 10.5G Ξ£ = 0B
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
β β β
ββ boot β
β ββ var.conf
ββ home.conf
No changes.
Running parted
on the raw image file on the host computer also shows all the partitions in the partition table:
$ parted demo-disk.raw p
Model: (file)
Disk demo-disk.raw: 11.3GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:
Number Start End Size File system Name Flags
1 1049kB 211MB 210MB fat32 boot boot, esp
2 211MB 571MB 360MB nix-store
3 571MB 7729MB 7158MB ext4 home linux-home
4 7729MB 11.3GB 3579MB ext4 var
Summary and outlook
The final repository is here on GitHub: https://github.com/applicative-systems/simple-systemd-repart-nixos-image
NixOS provides useful facilities (importable profiles) to build system images that donβt contain Nix itself, which relieves the system from a lot of complexity. This is very useful for embedded systems and everything that is supposed to be small and simple.
systemd-repart
works twofold in our system:
- The attribute paths
image.repart...
allow for the simple definition of the contents of a bootable image. - At boot time,
systemd-repart
can be run as a service to change the partitions before any of them are mounted.
Assuming we already know how systemd-repart
(it is a powerful but complex tool) works and how the NixOS configuration attributes work that configure it, these tools make it entirely possible to build such a system from scratch in a few minutes!
(Of course, the best way to do this is to copy&paste the generic parts from tutorials and then change the details for your use cases.)
In fact, NixOS and systemd are a great team.
The system that we ended up with is still larger than necessary. In the next article, we will have a look at a Nix developerβs tool set to make the image smaller. This small appliance image still does not provide a useful update path. The third article will then explain how to provide update images on a web server that the system can use to periodically self-update. Stay tuned!
We help many customers transfer from other Linux-based solutions to NixOS or improve their existing NixOS-based solutions. From that experience, we can help you copy the successful patterns of winning organizations and avoid the patterns that have not worked well elsewhere, instead of having to make this experience yourself from scratch. No matter if you just need a quick consultation on how to build something with Nix or if we can help you by lending developer time, schedule a quick call with us or e-mail us.
